RYC-680/1200 Type Fully-Automatic High-Speed Vacuum Plastifying Molding Machine

RYC-680/1200 全自動高速真空成型機

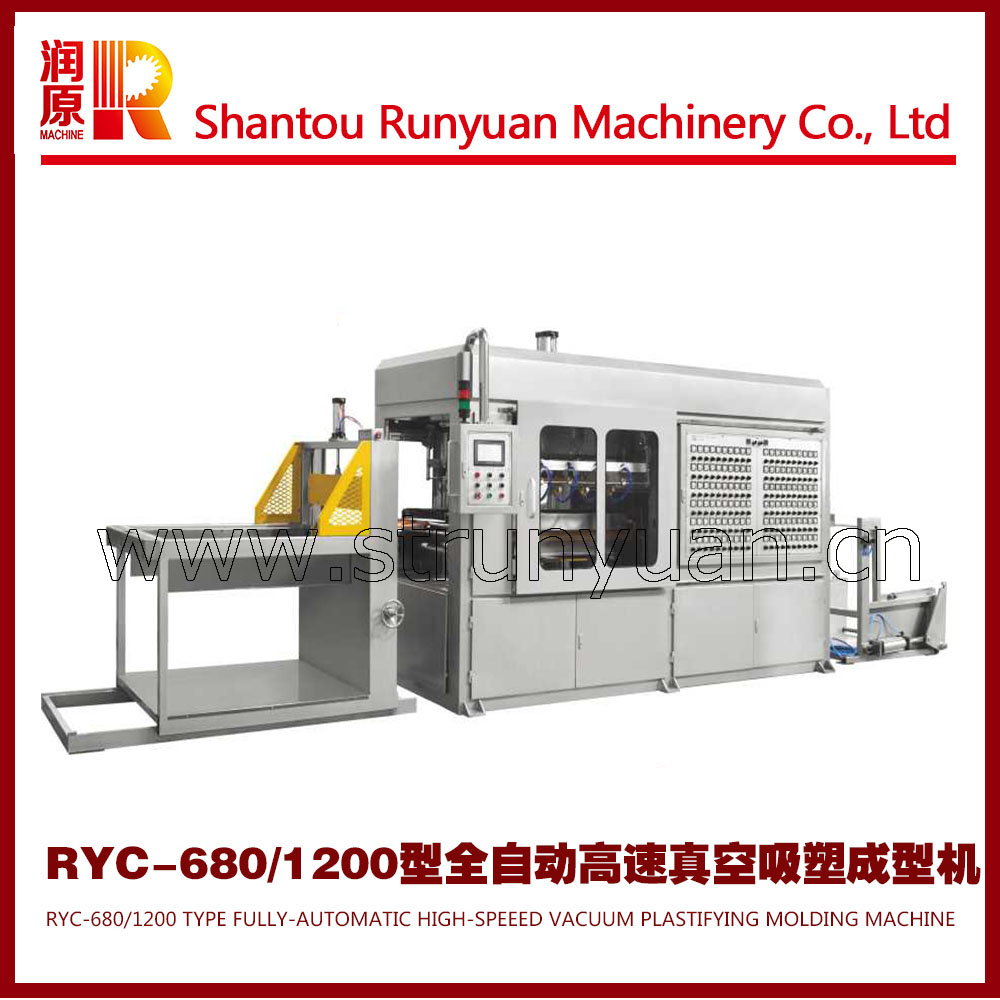

Machine Picture 機器圖片

Structural characteristics: 結構特性

This machine is suitable for PVC, PE, PET, HIPS, PP and other plastic sheet. It can produce different shapes containers.

本機適用于PVC、PE、PET、HIPS、PP等塑料板材。它可以產生不同形狀的容器

The machine is combined with pneumatic, mechanical and drive to achieve automatic continuous working of feeding sheet, forming, demoulding, ection cutting and stacking. Using PLC control system makes the machine working more reliable.

本機與氣動、機械、傳動相結合，實現送片材、成型、脫模、切料、堆垛等自動連續工作。采用PLC控制系統，使機器工作更可靠

Dual-chain feeding device with photocell control is used to achieve stable and reliable feeding. The width and length of feeding can be stepless adjusted accurately, suitable for the arrangement of different mould, with high use-factor of the sheet.

采用光電管控制的雙鏈進給裝置，實現穩定可靠的進片。送料寬度和長度可無級精確調整，適合不同模具的布置，板料利用率高

The function of two-step vacuum, it also has the functions of secondary upper die, demouding by vibration, and delaying vacuum, forming is suitable for making the products of large depth. The machine can be forming by negative mould or positive mould, convenient and fast for replacing the mould.Equipped heating system with upper and lower heaters of hollow far – infrared heating pieces for two – section heating

具有兩級真空功能，還具有二次上模、振動脫模、延時真空等功能，適用于制造深度大的產品。本機可采用負模或正模成型，更換模具方便快捷。采用中空遠紅外加熱片上下加熱器進行兩段加熱的加熱系統

Divisional temperature control system makes heating process economical, even and easy adjusting.

分區控溫系統，加熱過程經濟、均勻、調節方便

With wind cooling and water fog system, so as to work continuously without water cooling inside mould, especially suitable for production by non-metal mould.具有風冷、水霧系統，模具內部無水冷連續工作，特別適合非金屬模具生產

Equipped with dual – shaft material loosing device, section-cutting and stacking unit, to improve production efficiency

配有雙軸物料松脫裝置，分段切割堆垛裝置，提高生產效率

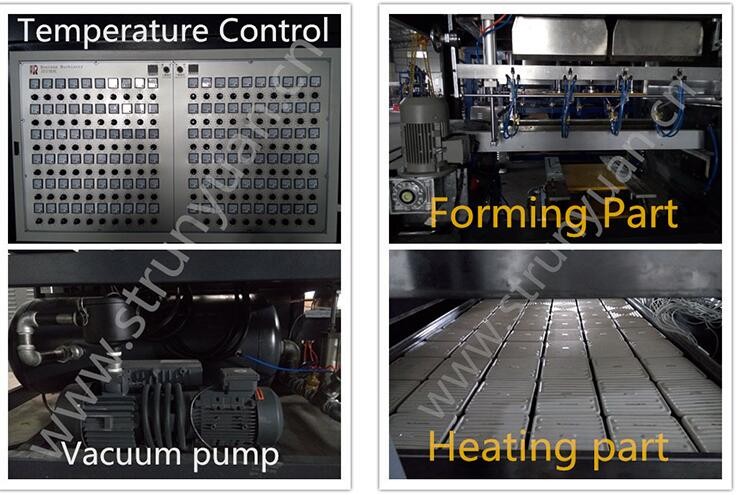

Machine Details Picture 機器細節圖片

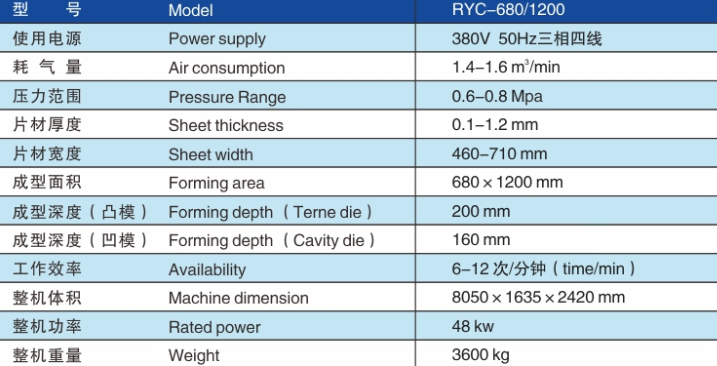

Machine Parameter: 機器參數

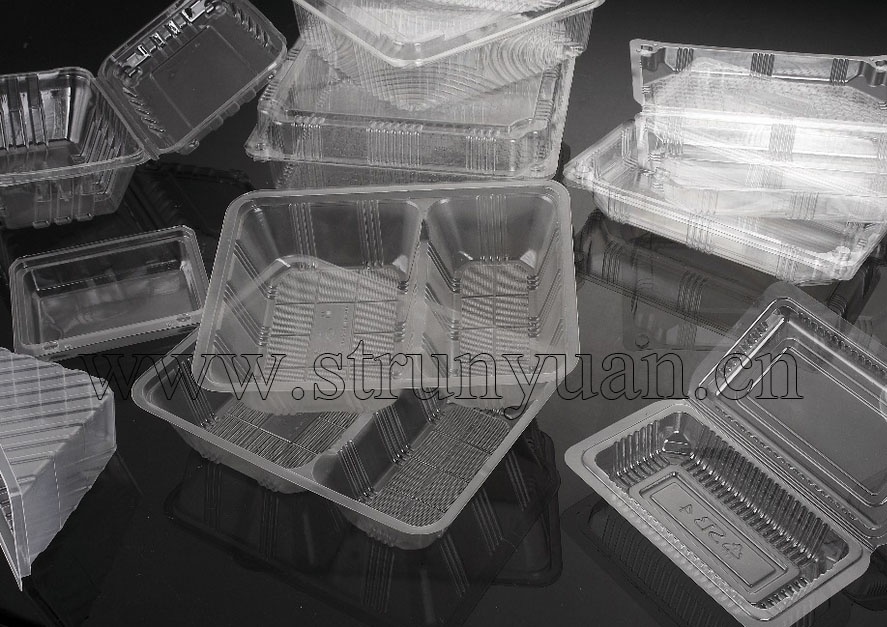

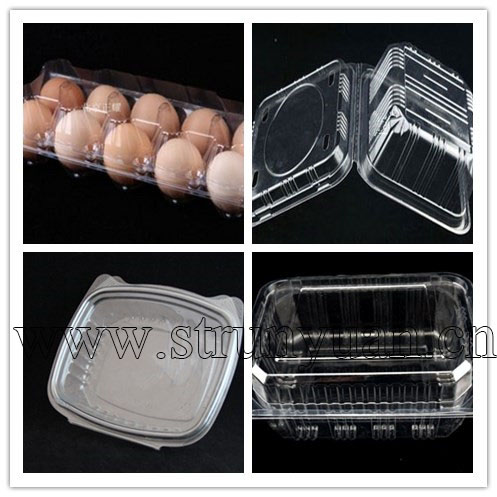

Machine Produce Sample Picture 機器生產樣品圖片

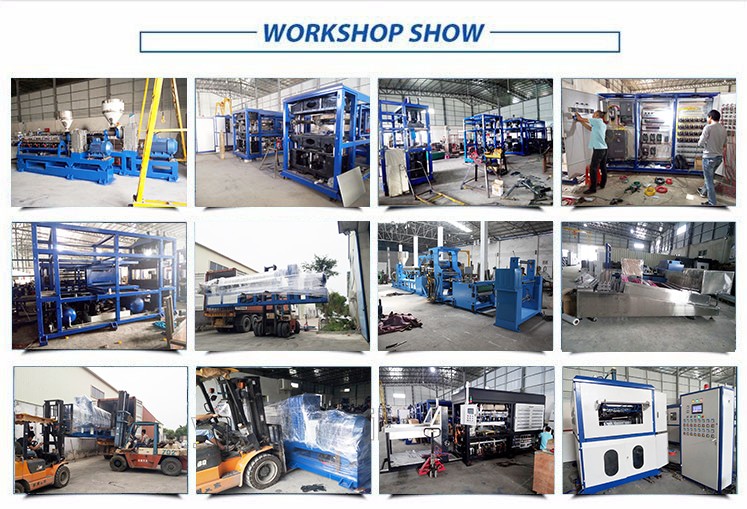

Factory & Workshop 工廠&車間
